microTimer Digital/Ejection

Timer (Kit Version)

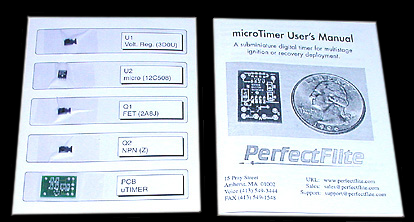

The PerfectFlite microTimer is a digital single-event timer suitable for firing ejection charges or airstarting auxillary/second stage motors. The time delay is set from 1 to 16 seconds by a set of jumper pads (not field adjustable), and triggering is accomplished via a breakwire or pull-pin. A bright LED provides visible igniter continuity status, and a low-resistance MOSFET switch provides up to 5A of current to the igniter. Dwarfed by a quarter in the picture to the left, this is perhaps the smallest ejection/staging timer available!



Legacy Product

Pre-2003

Specifications
