Amplified External Beeper

Larger, louder add-on beeper for StratoLogger Altimeter. No wiring necessary - just plug the attched cable into the StratoLogger's Audio port. The AEB1 amplifies all sounds (powerup settings, continuity beeps, post-flight readouts, and locator siren) by up to 26db. Assembly consists of cable, small PCB with circuitry to amplify the StratoLogger's audio output to 18 volts p-p (with 9V StratoLogger battery), and a larger high efficiency piezo speaker. Minimal additional current drain (1 ma typical) on StratoLogger's battery. Measures 0.9" diameter x 0.4" thick.

Note: This item is not compatible with the StratoLoggerCF altimeter.


Suggested Retail

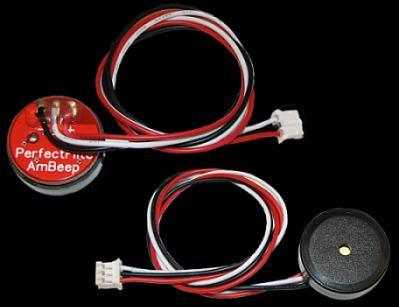

Top view

Bottom view
